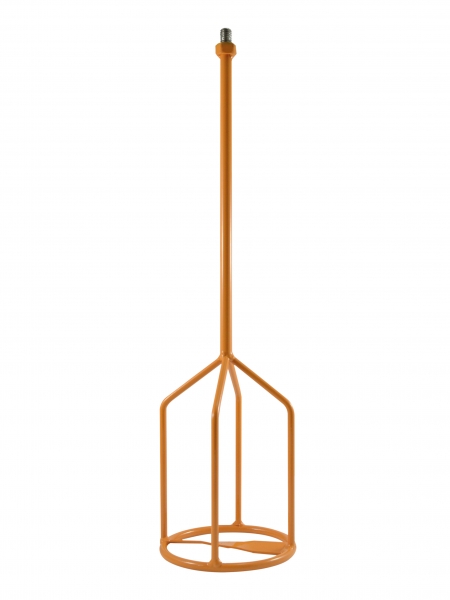

Basket mixing paddle 160 GN

Product no.: 21162

The vertical hoop paddles of the epi basket mixing paddle centrifugally throw the material to be mixed outwards and mix it. This prevents lumps from forming and ensures that the material is homogenised quickly.

Due to its special shape, the material is also worked out well in the corners of the mixing bucket. The crossbar supports clean material removal from the bottom of the vessel.

Advantages:

  • Conveying capacity due to bar
  • Decreased material sticking to the bottom
  • Conveying into the mixing zone
  • No formation of air pockets

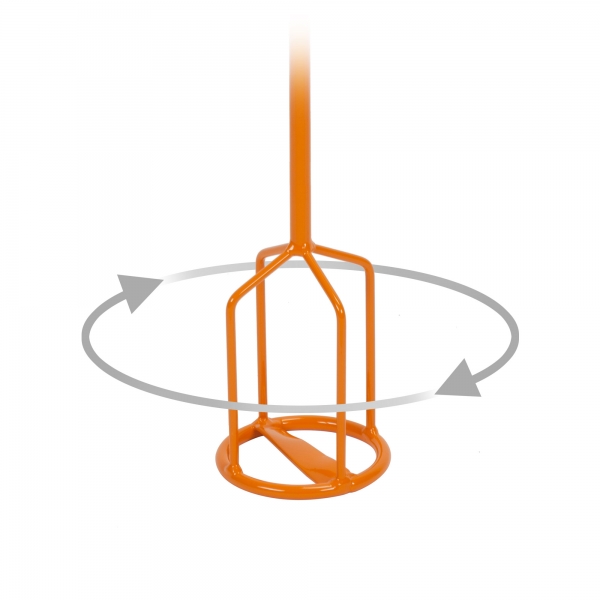

Mix action:
Horizontal, centrifugal

Technical design:
Welded steel construction, plastic-coated

Applications:
Recommended  for lump-prone and tough materials such as self-levelling fillers, levelling compounds, adhesives, sealants, bitumen coatings, mastics, epoxy resin components etc.

Price:

32,10 EUR

19 % VAT plus. excl. Shipping costs

Basket mixing paddle 160 GN

Technical data

Type Paddle Ø
in mm
Mix
in ltr.
Length
in mm

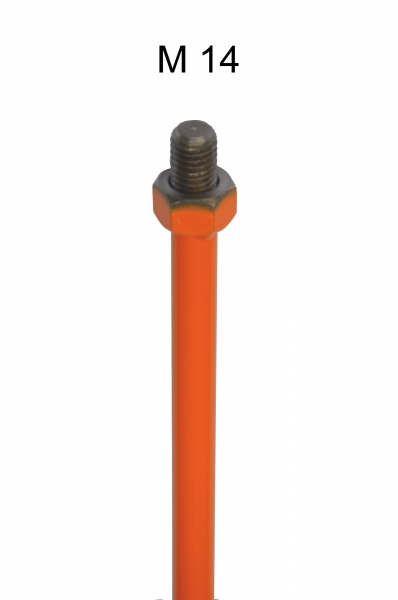

Shaft Stock no. Weight
Basket mixing paddle 160 GN 160 35 - 50 600 M14x2,0 21162 1,28 kg

Basket mixing paddle 160 GN
Basket mixing paddle 160 GN
Basket mixing paddle 160 GN

Manufacturer:
Erich Plundrich GmbH - epi Misch- und Rührtechnik
Sägmühlstraße 36
D-74930 Ittlingen
Germany
info@epi-mix.de
